EasyWrap 165 T

Trailed bale wrapper

EasyWrap 165 T

Bale wrapper

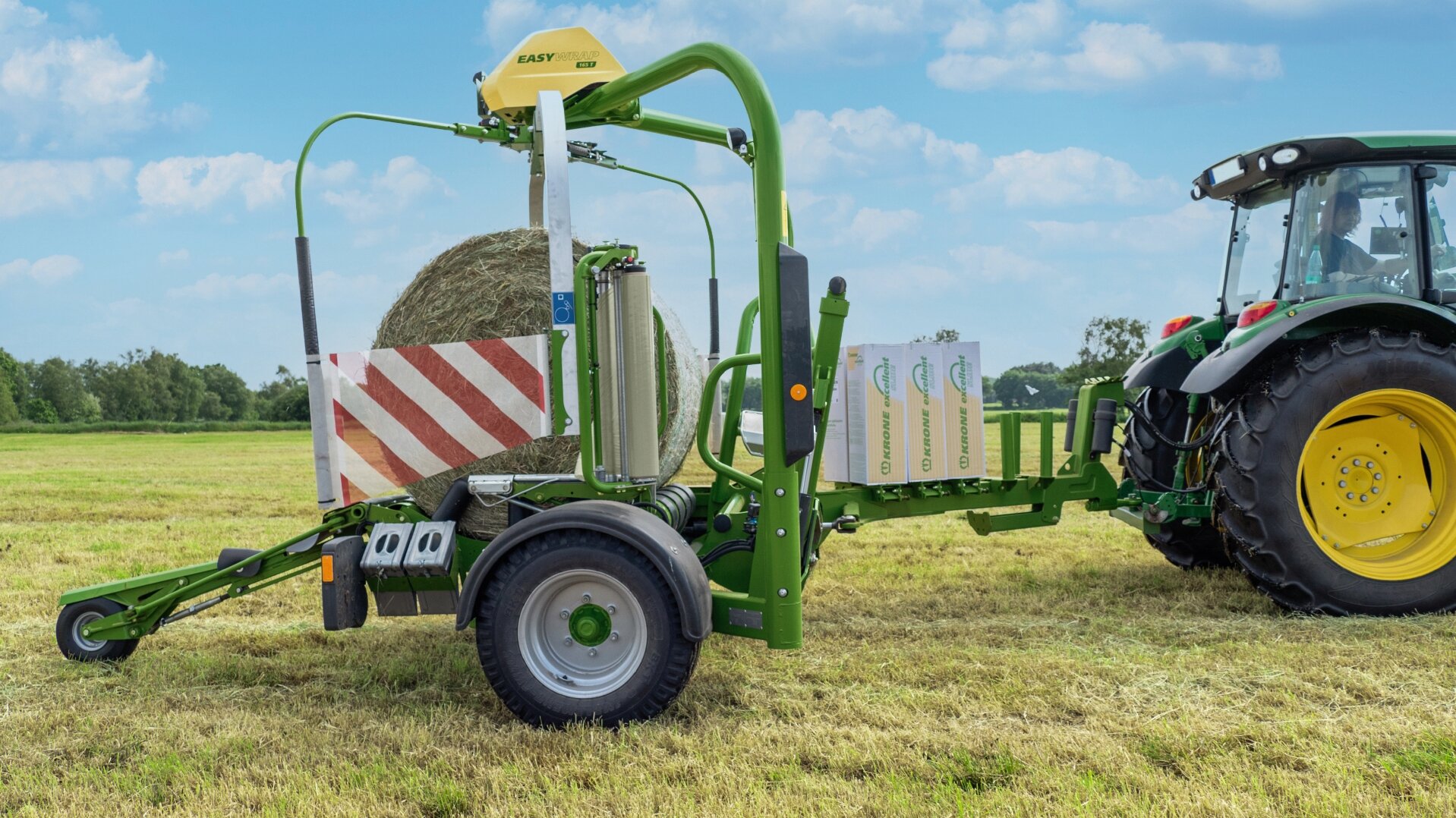

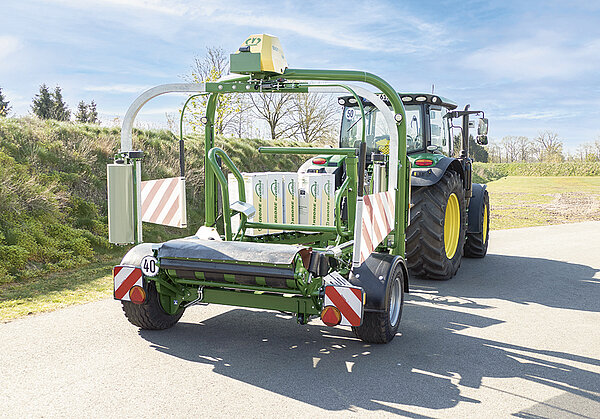

The KRONE EasyWrap 165 T offers convenient attachment to any tractor. Thanks to its trailed design, it handles the heaviest bales also when hitched to a tractor with lower lifting powers. Coupling the machine to the tractor’s lower links is fast and easy. Equally convenient is the drawbar which pivots hydraulically from transport into work position – conveniently triggered with a touch of a button from the cab.

  • Slim drawbar for maximum maneuverability
  • Pivots automatically from transport to work position and vice versa
  • Couples to the lower links for optimum maneuverability and convenient attachment
  • Stores up to ten spare film rolls for long working days (option)
Please accept marketing-cookies to see this content.

Product video

KRONE EasyWrap – trailed bale wrapper for professionals

KRONE adds a new machine to its round bale wrapper program: the new double-arm EasyWrap 165 T which follows the EasyWrap 150 launched in summer 2020. Wrapping 3' 3.6" - 5' 4.9" diameter bales, the 165 T is a truly high-capacity machine where a double arm orbits around the bale for wrapping. The machine lifts up to 1.8 ton bales and wraps them at speeds of up to 40rpm achieving maximum efficiency and daily productivity.

Product features

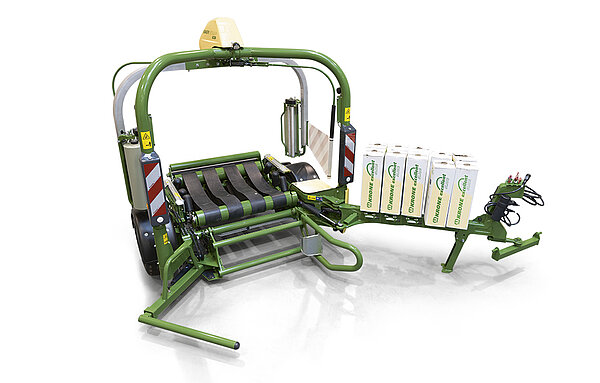

EasyWrap 165 T
EasyWrap 165 T
  • Double wrapper: The two wrapping arms are reversable and orbit around the bale at up to 40 rpm for maximum productivity and best silage quality
  • Running gear: Low centre of gravity ensures great stability especially in sloping fields
  • The loading arm adjusts without tools: The robust loading arm lifts reliably bales of various sizes and weights
  • The wrapping table is formed by four strong textile belts: Up to six bobbins roll the bale effectively
  • Position controlled wrapping arm leads to perfect overlaps behind any tractor (no time control!)
  • Automated functions for convenient bale control – from collecting to unloading

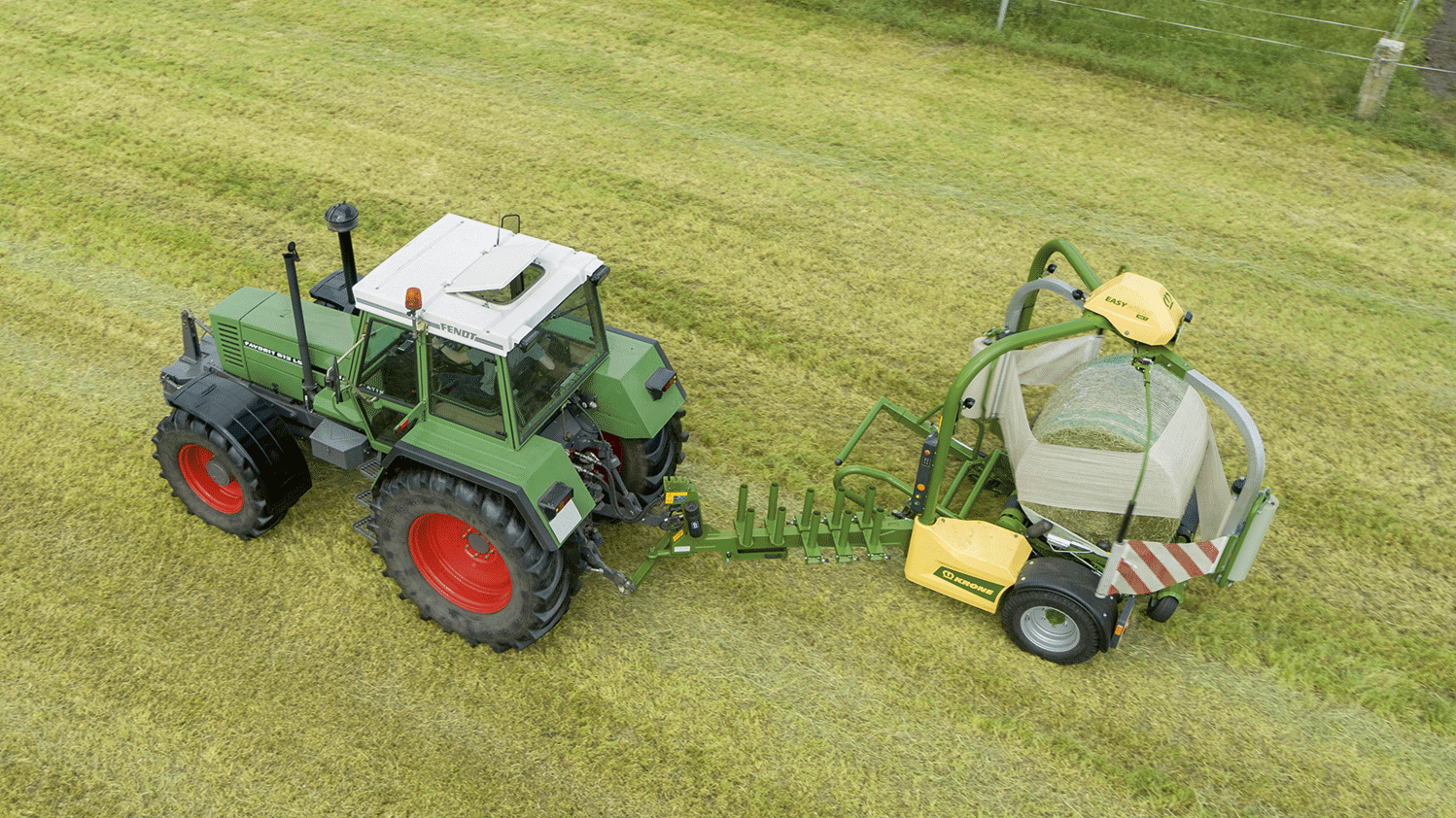

The ­KRONE EasyWrap 165 T offers convenient attachment to any tractor. Thanks to its trailed design, it handles the heaviest bales also when hitched to a tractor with lower lifting powers.

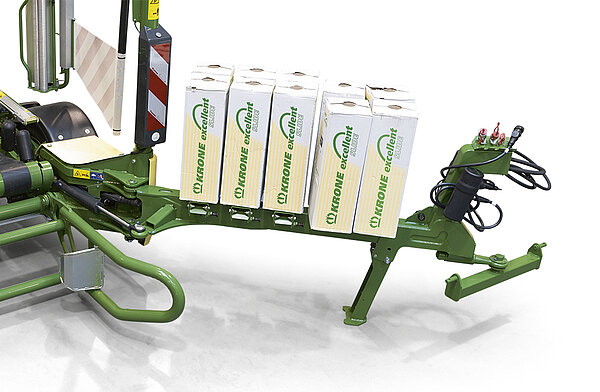

The drawbar
The drawbar
  • Slim drawbar for maximum manoeuvrability
  • Pivots automatically from transport to work position and vice versa
  • Couples to the lower links for optimum manoeuvrability and convenient attachment

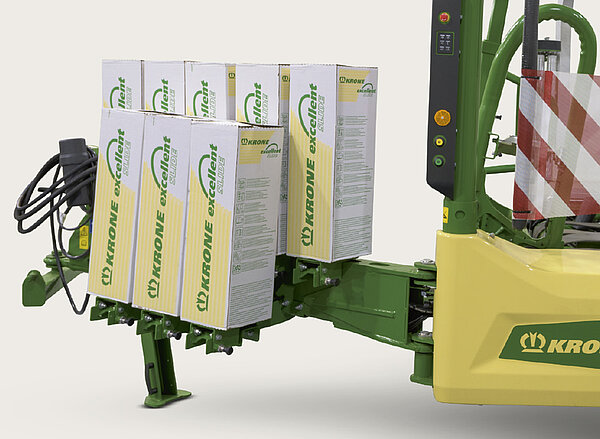

  • Storage space for eight additional film rolls for long working days (option)

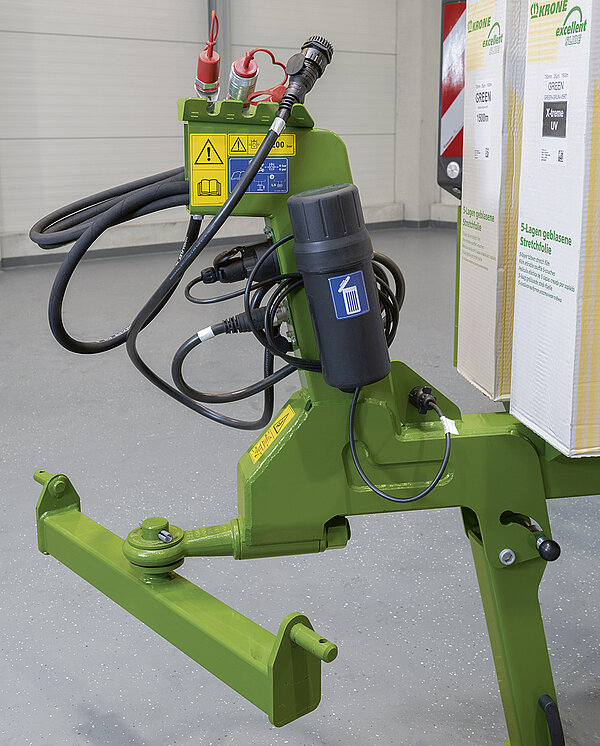

Coupling the machine to the tractor’s lower links is fast and easy. Equally convenient is the drawbar which pivots hydraulically from transport into work position – conveniently triggered with a touch of a button from the cab.

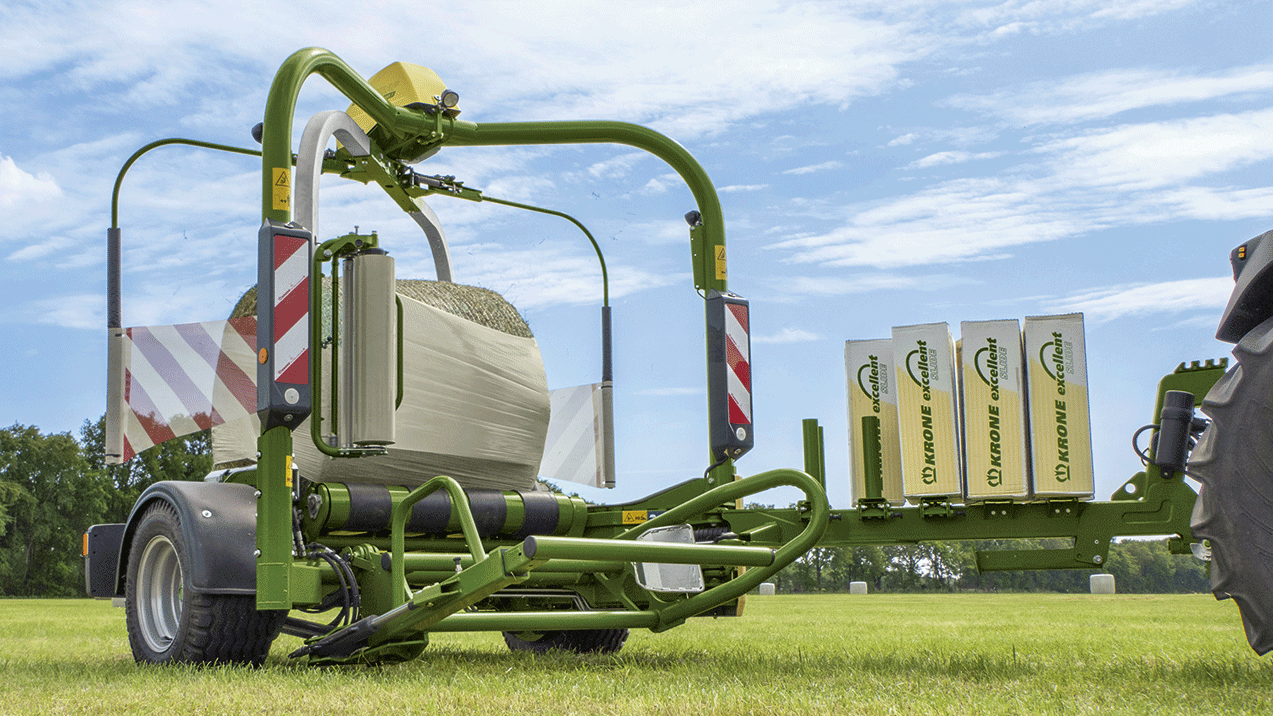

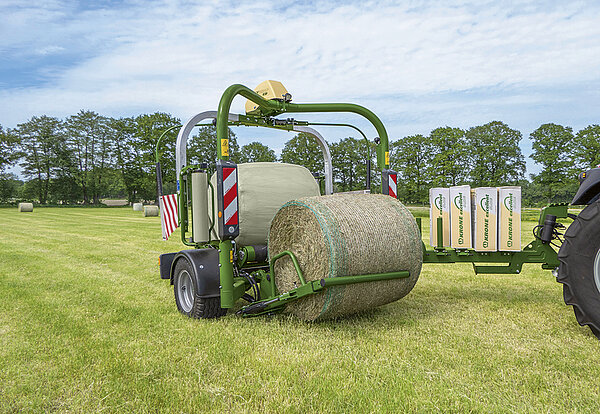

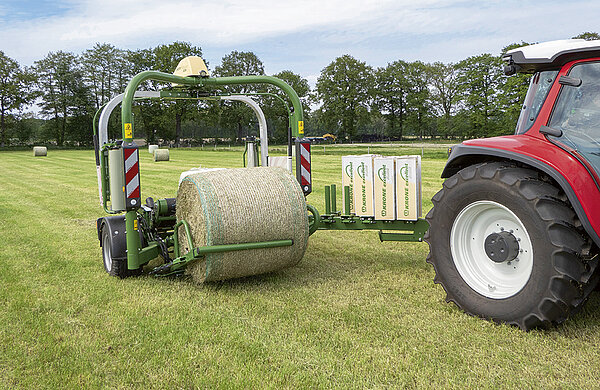

The bale pick-up and discharge
The bale pick-up and discharge

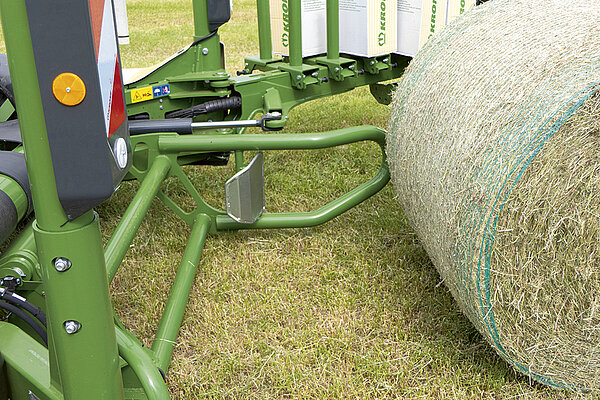

  • Strong loading arm for reliable bale handling
  • Adjust the machine to a different size of bale without the need of tools
  • Transport two bales to the collecting point

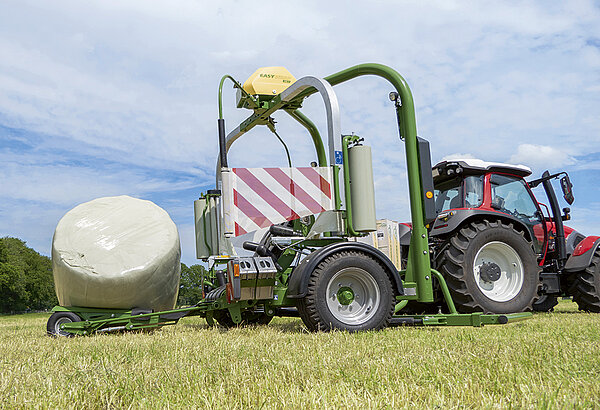

  • Unload the finished bale on the move for maximum productivity

The EasyWrap 165 T loading arm is adjusted to the current bale size without tools and places the bales gently on the wrapping table. It can even unload the bales on the move for boosted efficiencies.

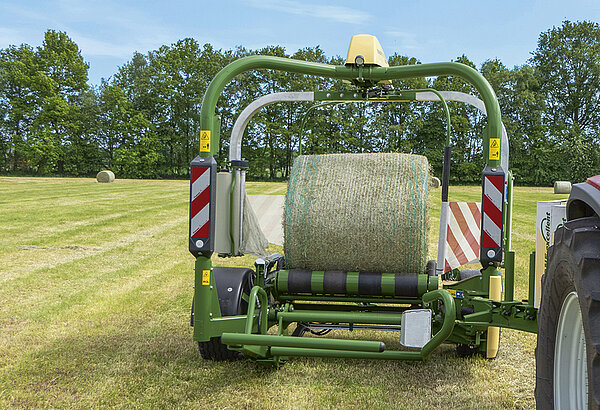

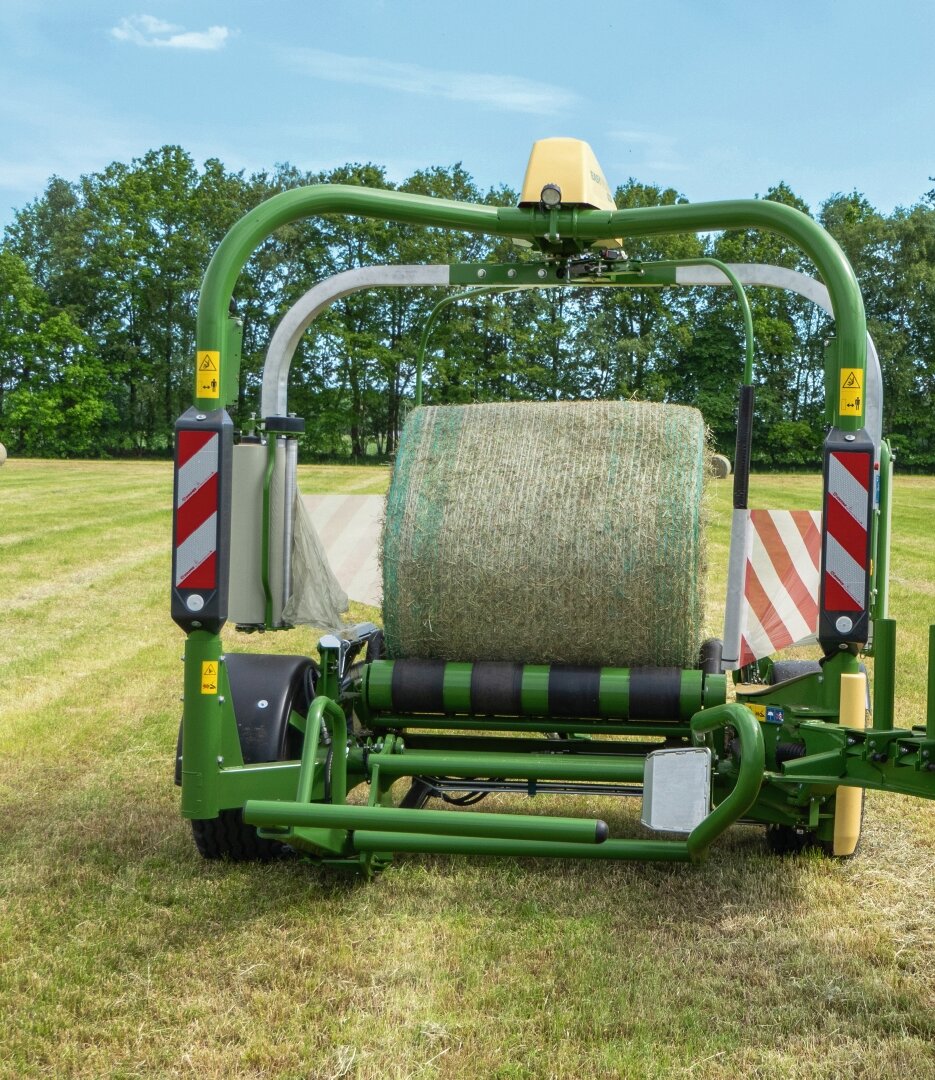

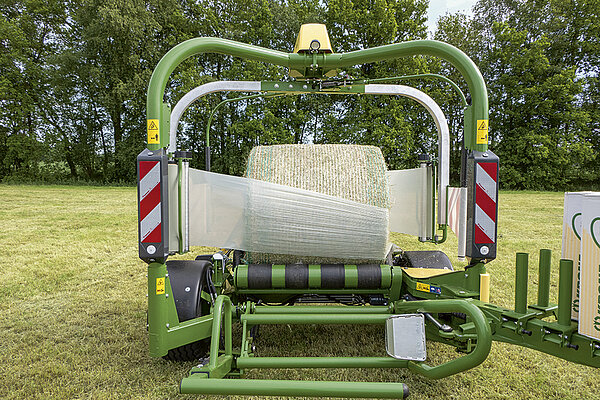

The wrapping table and the wrapping device
The wrapping table and the wrapping device
  • The extremely powerful twin-arm wrapper operates at up to 40 rpm

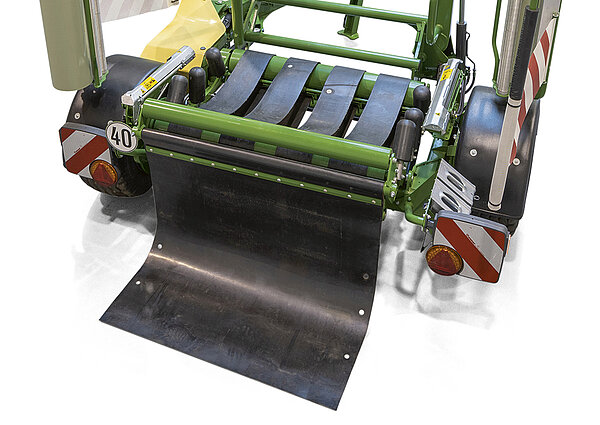

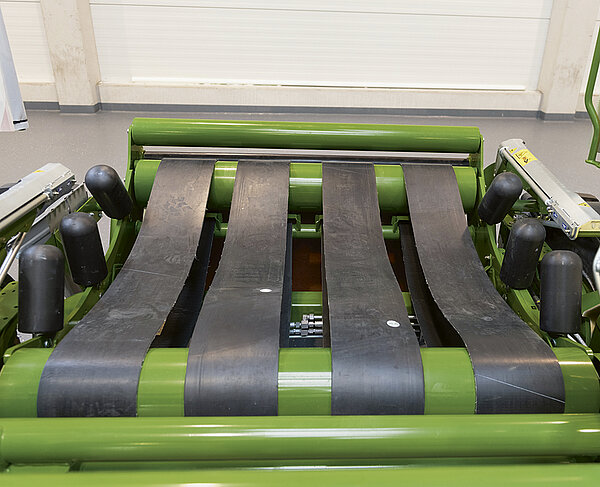

  • The wrapping table is made up of four fibre ribbons that roll the bale reliably

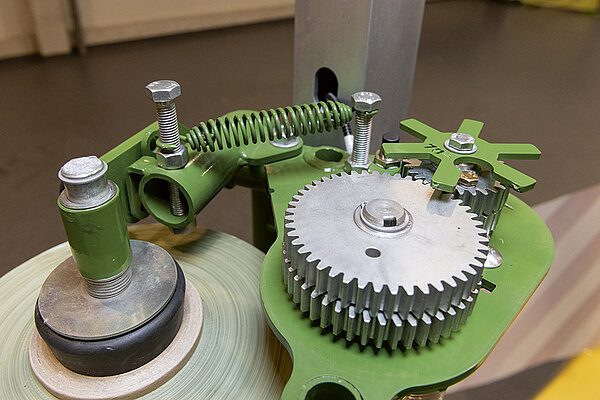

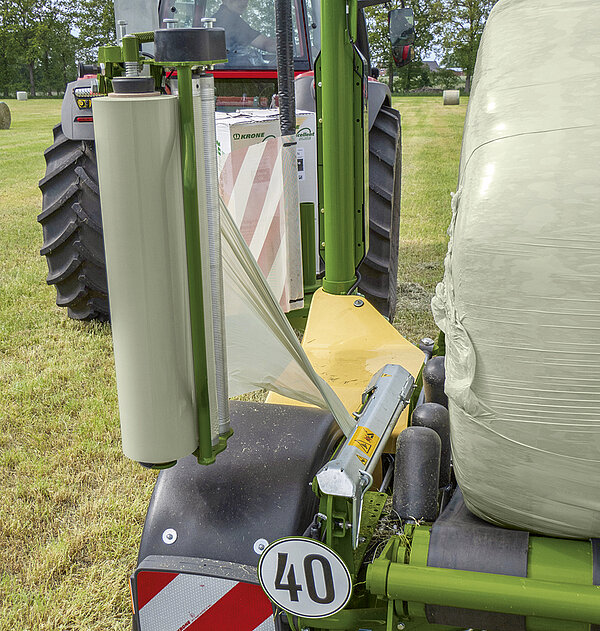

  • The film dispenser with integral film break detector ensures there are no air pockets

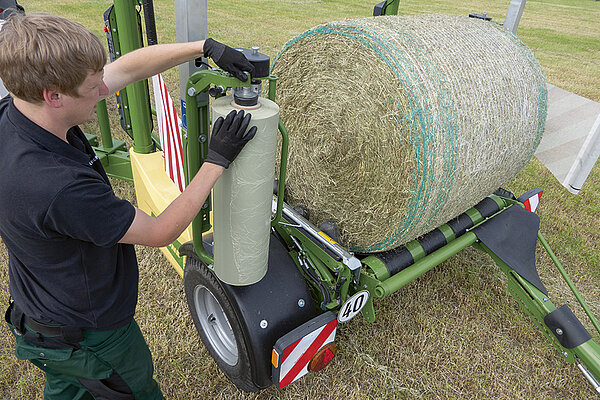

  • Quick-change system for easy and convenient film refills

The twin-arm wrapper operates at up to 40 rpm, delivering maximum work rates. Sensor controlled, the wrapper offers maximum precision applying tightly stretched layers of film for highest-quality forage.

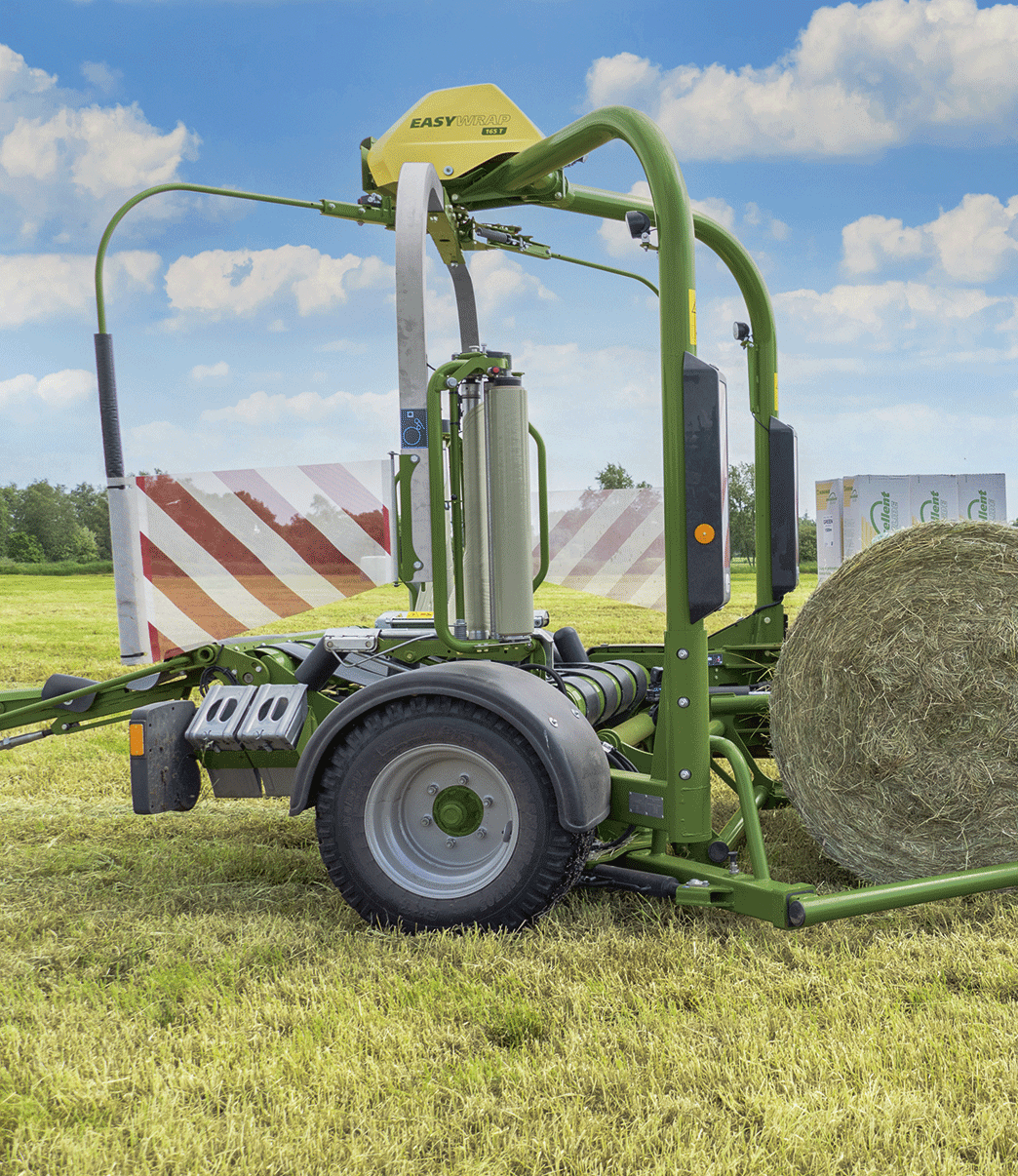

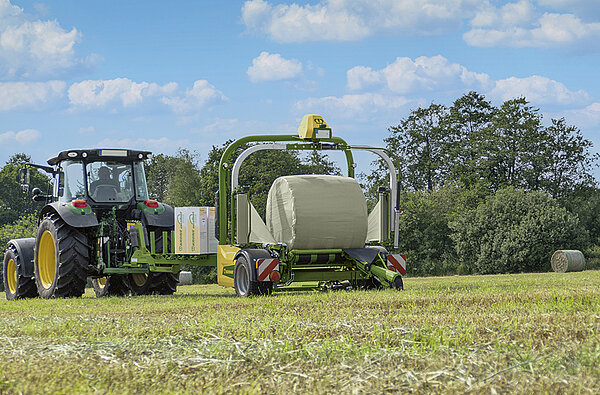

The running gear and lighting
  • Low-slung chassis and a low centre of gravity for great stability
  • Wide tyres for soft treading even in difficult conditions

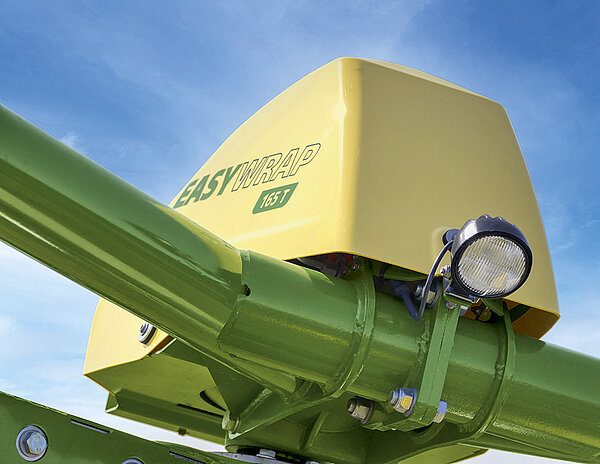

  • LED road lights and work light for long working days

Its low centre of gravity gives the EasyWrap 165 T maximum stability on slopes and the wide tyres provide gentle treading in the field and light pulling on roads.

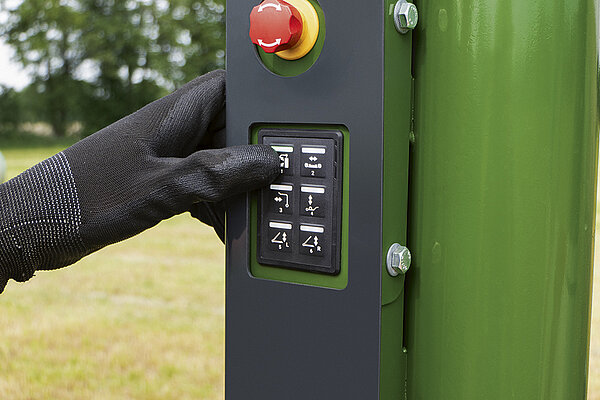

Machine operation

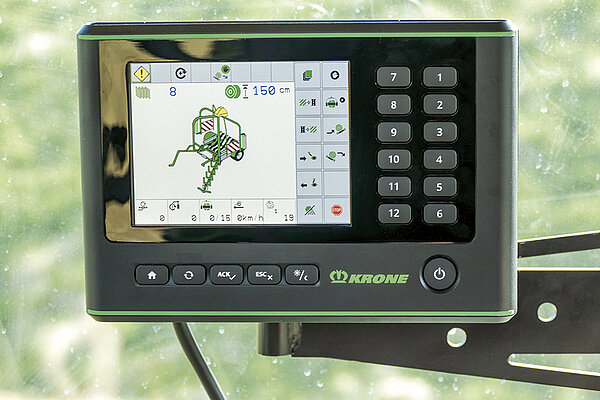

  • DS 500 – the user-friendly KRONE machine terminal

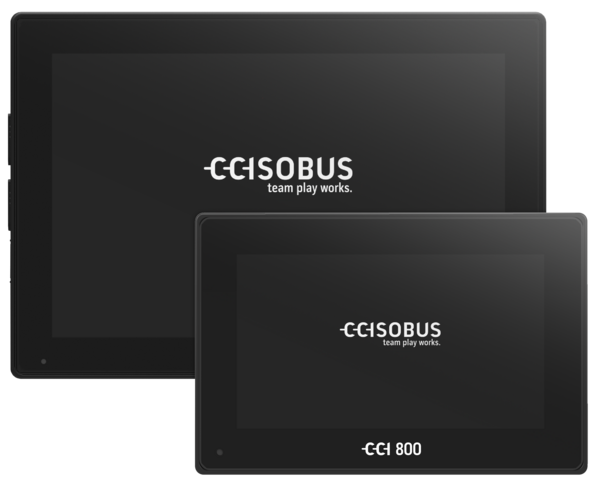

  • CCI 800 – the ISOBUS-compatible 8-inch touchscreen for universal use
  • CCI 1200 – the ISOBUS-compatible 12-inch touchscreen offers premium graphics and the highest operator comfort
  • ISOBUS tractor terminal for straightforward operation

The KRONE operator terminals offer intuitive and easy operation for EasyWrap 150 and EasyWrap 165 T. Operators can control all major machine functions from the tractor – for maximum comfort and productivity.

Models

EasyWrap 165 T
EasyWrap 165 T
Attachment Link arms, trailed configure
Wrap arm double-arm configure
Max. film roll holders 8 configure
Bale diameter (m) 1.00 - 1.65 configure
Max. bale weight (kg) 1700 configure
Max. wrapping speed (rpm) 40 configure
