TX

• Up to 46 / 56 m³ capacity
• Single-frame concept for a lower dead weight and higher payload
• Sloping steel base for more loading volume and greater driving comfort
• Hydraulic articulated drawbar: Wagon lowerd to the front, ideal for opening up a field

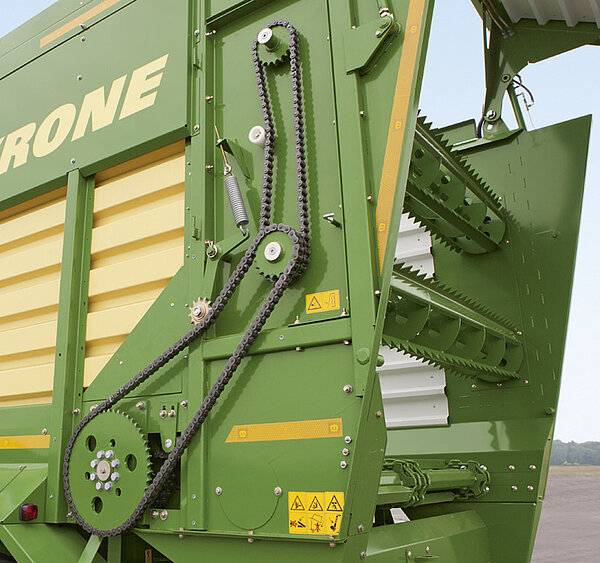

• Extremely powerful scraper conveyor drive by roller chain for fast unloading
• D-models with two discharge rollers for uniform forage discharge
• Axle assemblies with hydraulic compensation for best driving stability
• Optionally hydraulic or electronic forced steering for easier manoeuvring

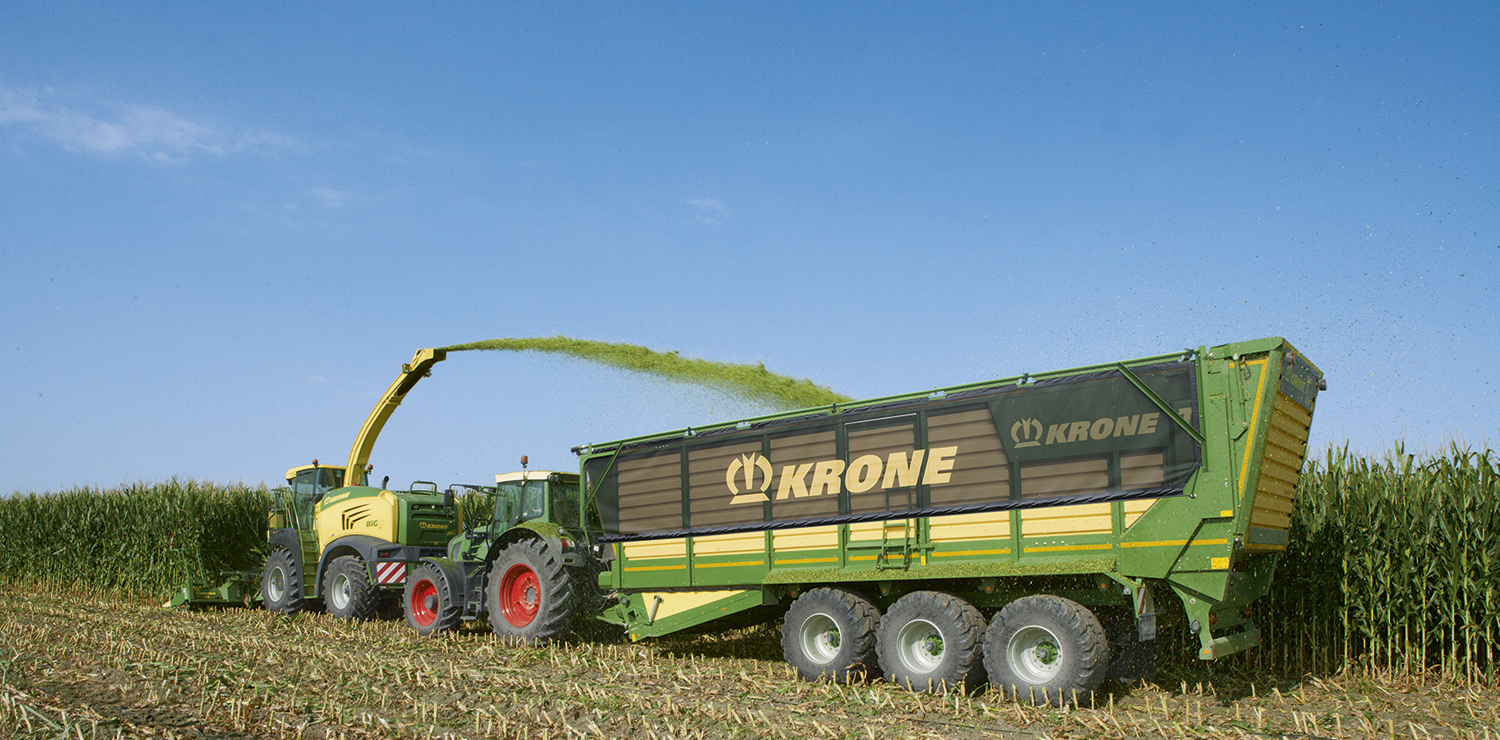

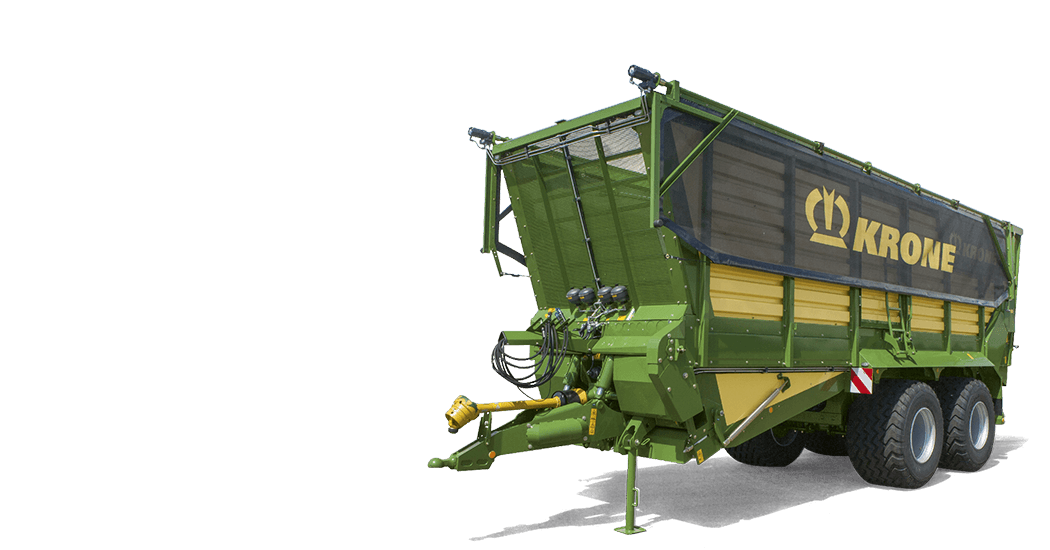

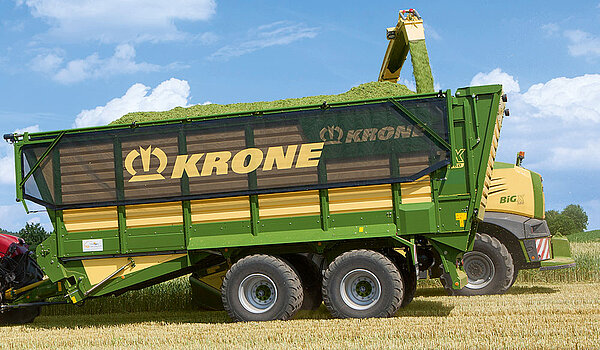

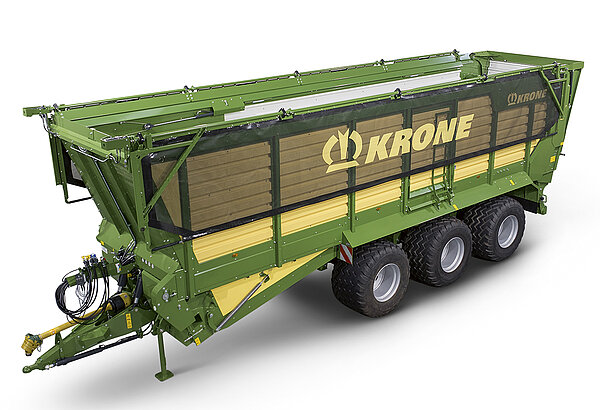

KRONE TX – the name stands for powerful, efficient and reliable removal logistics for forage harvesting. The huge transport volume coupled with a very fast unloading time make the TX forage transport wagon the absolute professional in the harvest fleet!

• Huge loading volume: 46 and 56 m³

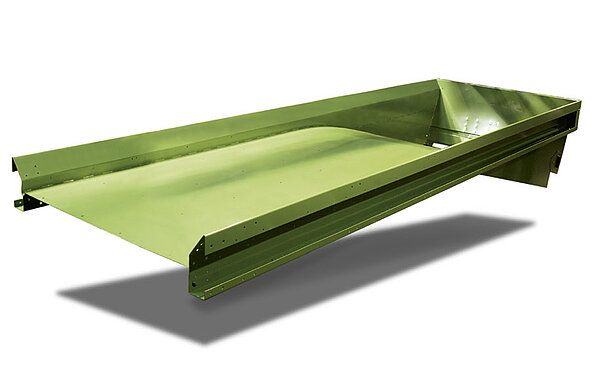

• Single-frame concept with front loading trough for a lower dead weight and more payload
• Rugged and heavy-duty all-steel body
• Conical design, so that the load slides better
• Unique unloading aid

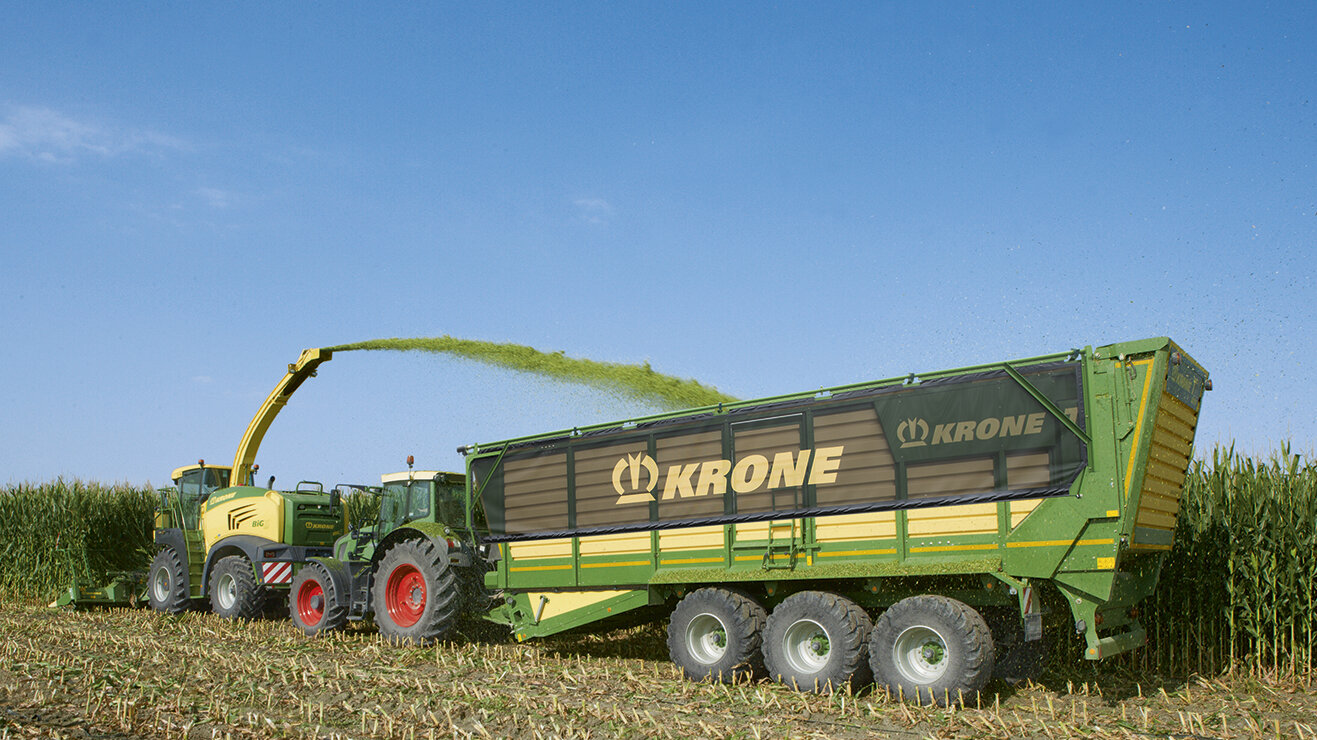

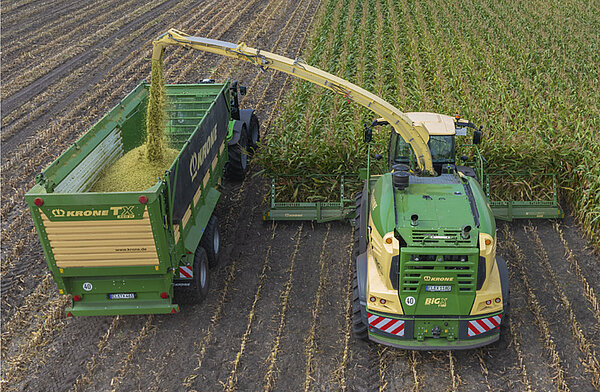

A KRONE TX is the perfect silage trailer to serve the forage harvester, offering huge capacities, safe and swift travel as well as fast unloading. A TX boosts your efficiency, reduces costs and sets new standards.

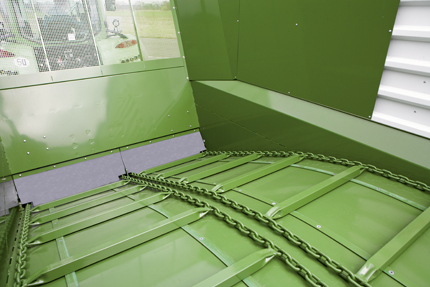

• Lowered scraper conveyor for more loading volume, best driving characteristics on slopes, in the field and on the road
• Better traction of the tractor rear wheels when initially loading the front wagon
• Double scraper conveyor: Robust and non-slip

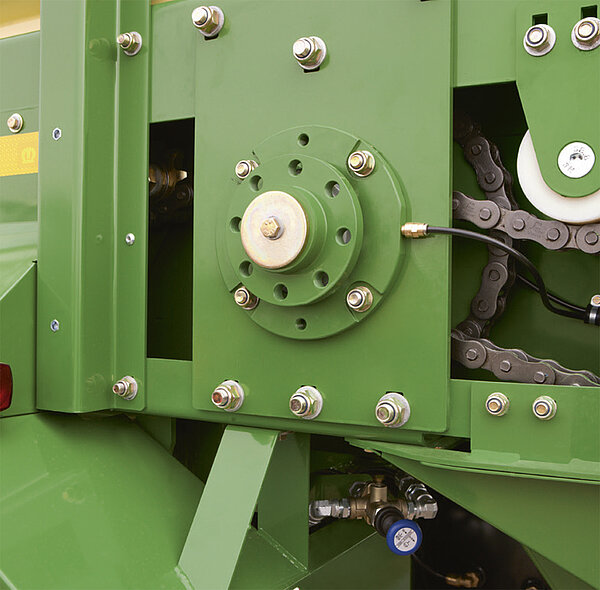

• Direct and mechanical scraper conveyor drive::
  • extremely powerful
  • extremely fast
  • independent of the tractor hydraulics

The KRONE TX forager transport wagon is tailored to the needs of contractors who seek higher capacities and speedy unloading. These requirements are met by the sloping steel base and the scraper conveyor supply, which is not powered by the tractor hydraulics.

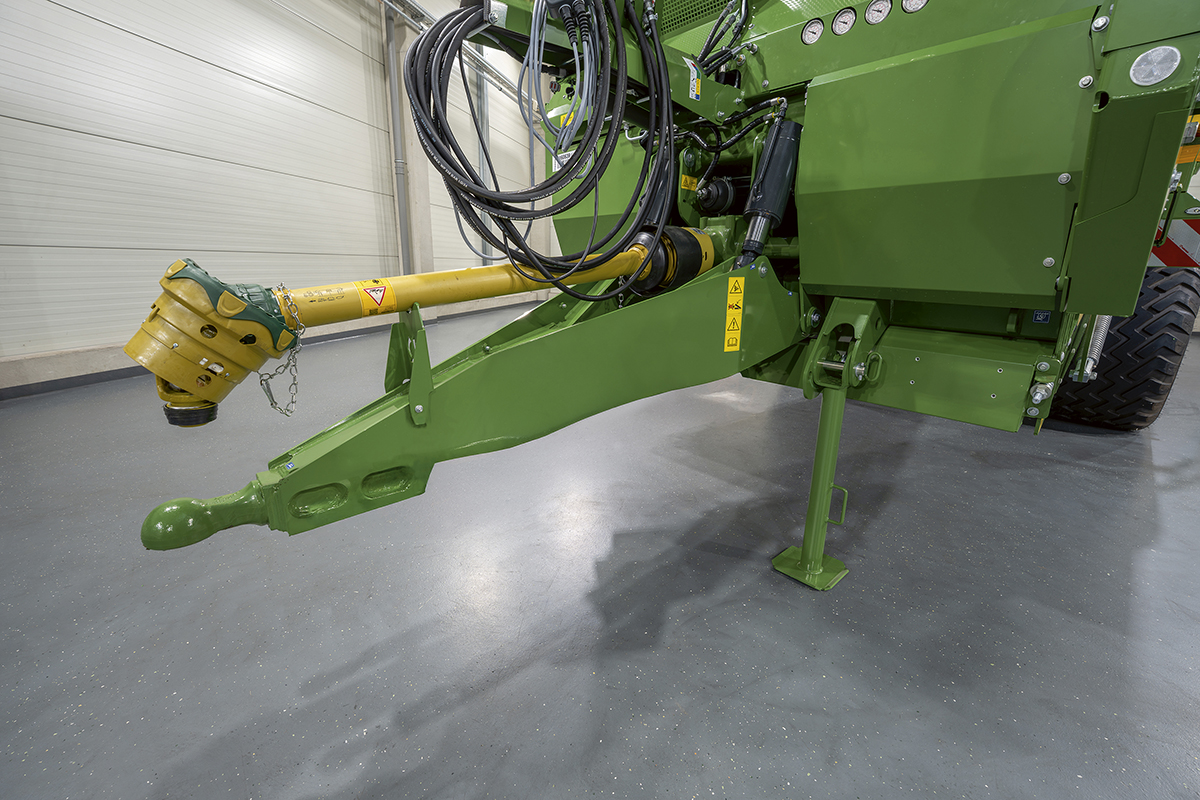

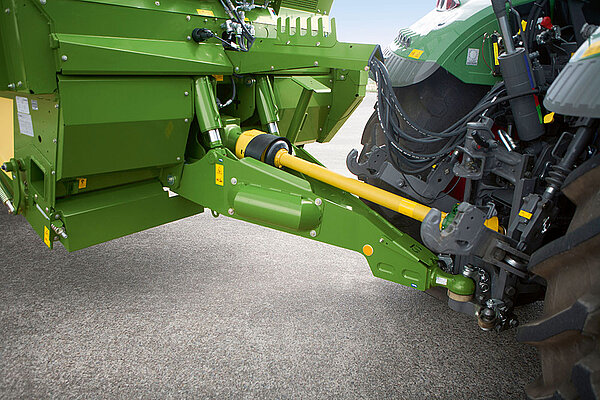

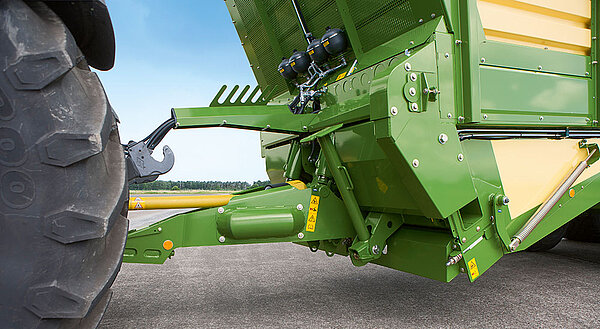

• Wagon can be lowered towards the front for optimum filling when opening up a field
• Variable ground clearance – ideal on the silage clamp and for deep ruts
• Tight turning radius – no need to dismount the tractor lower links
• Quiet running – hydraulic drawbar suspension

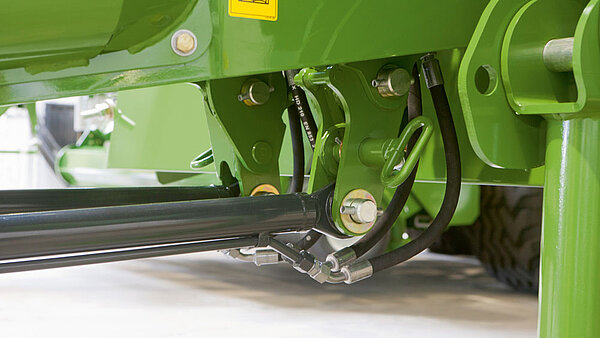

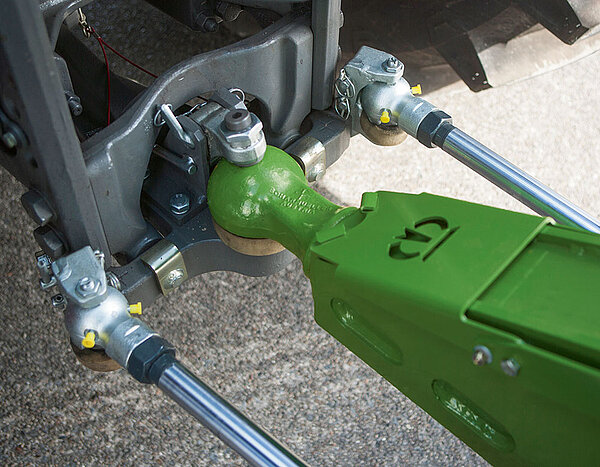

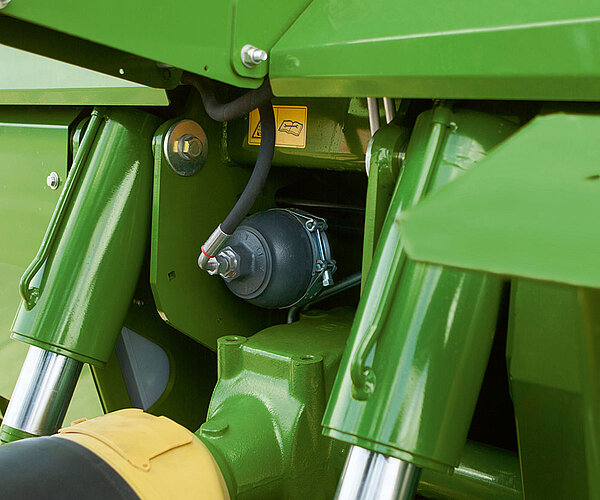

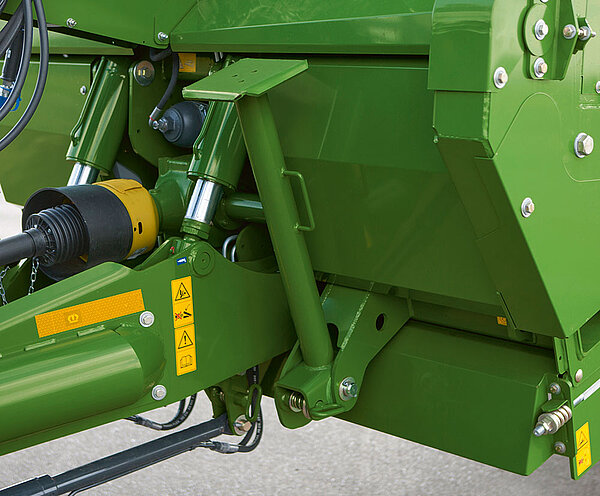

The articulated drawbar offers two benefits: the hydraulic cylinders lowers the front end of the machine when opening a field. Vice versa it raises the front end to increase the ground clearance on rutted land. The slim drawbar with ball-head attachment is suspended to offer superior ride stability. The narrow drawbar with ball-head attachment has hydro-pneumaticsuspension and offers maximum driving comfort.

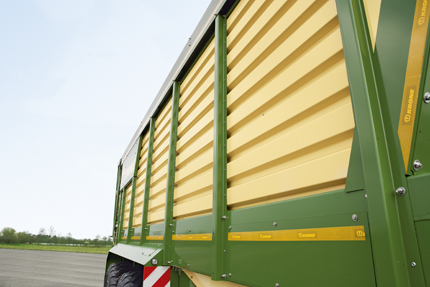

• Robust all-steel body, few components

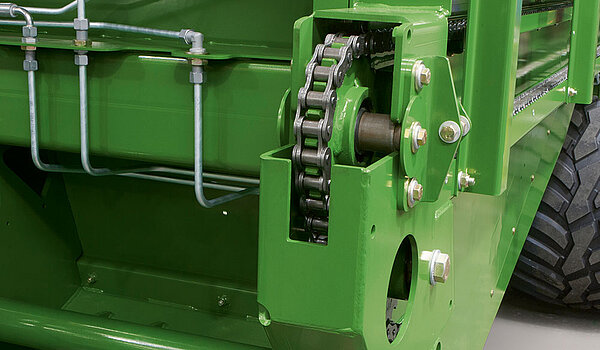

• Unloading takes less than a minute

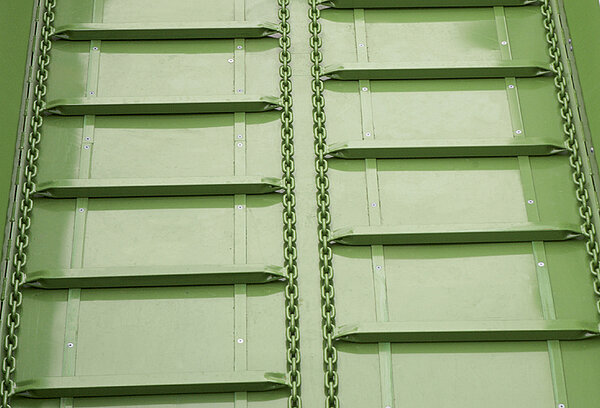

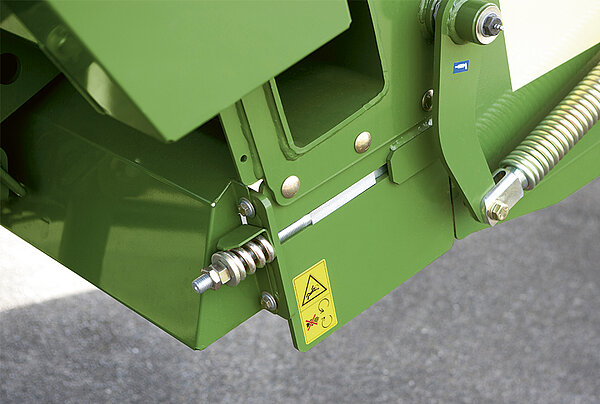

• Extra strong scraper conveyor with four chains

The forage transport wagons TX 460 and TX 560 are the specialist machines that really boost the efficiency of your harvest fleet – courtesy of the extra loading space that is gained from the sloping scraper conveyor, the scraper conveyor speed and the single-piece frame design that increase the payload.

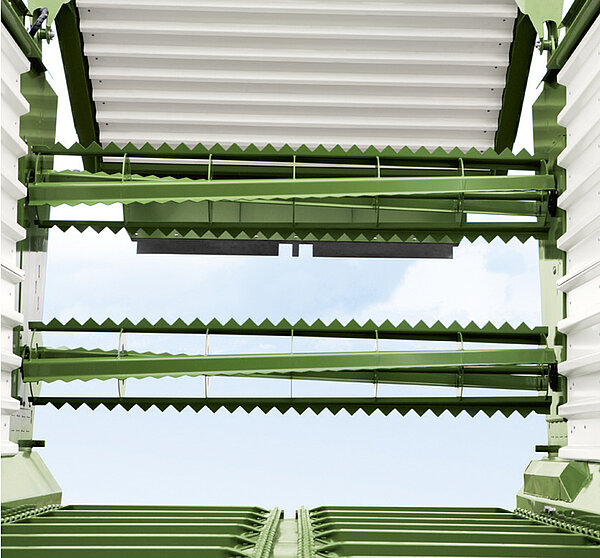

• Two discharge rollers for depositing the forage evenly

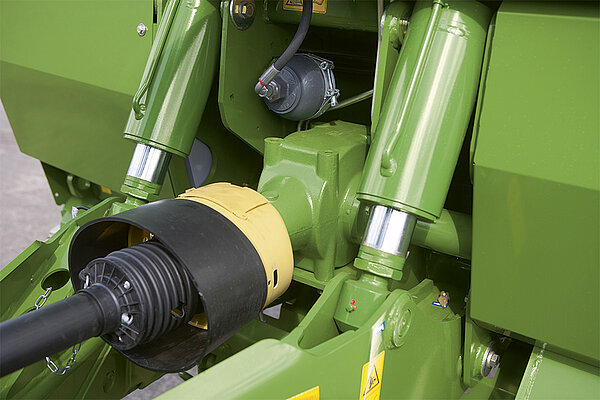

• Discharge roller protection via the main universal shaft

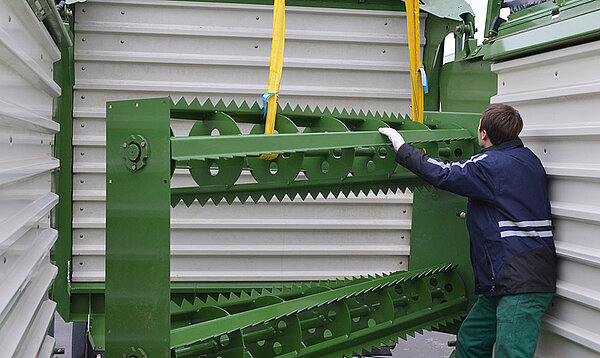

• Quick installation and removal of the complete discharge roller unit
• Fast unloading with a scraper conveyor speed of 17 m/min

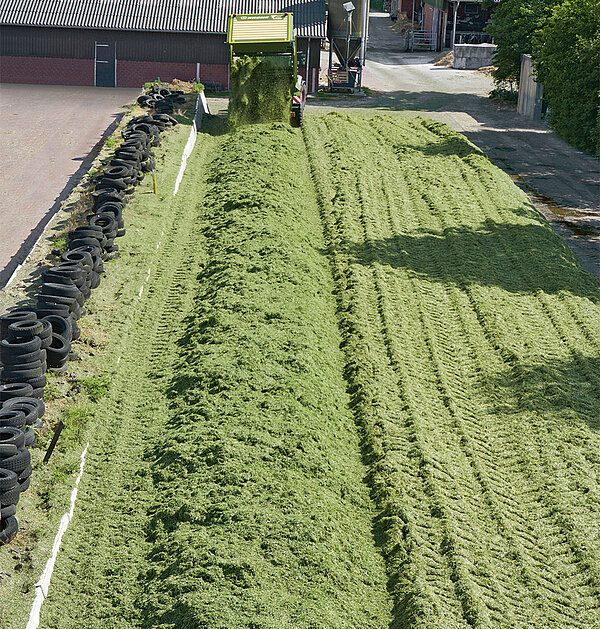

The two discharge rollers on the KRONE TX 460 D and TX 560 D forage transport wagons unload the material in a uniform mat for perfect rolling. Powerful and effective, the rollers are made to match the high unloading rate of the scraper conveyor.

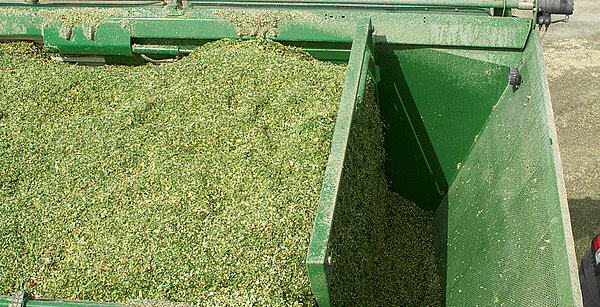

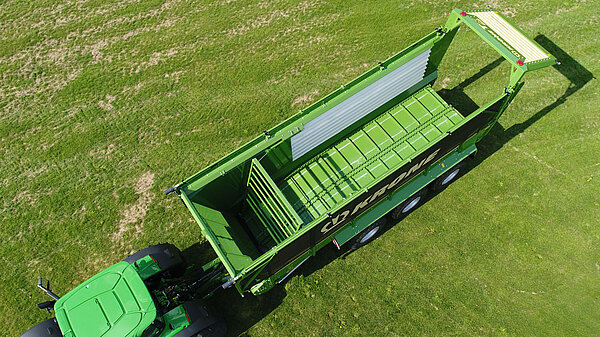

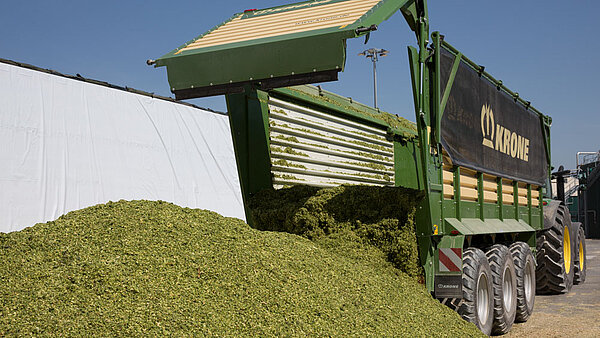

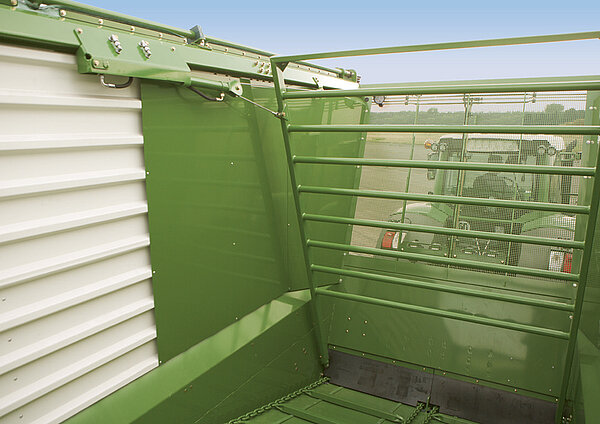

• Unloading aid for fast and optimal emptying

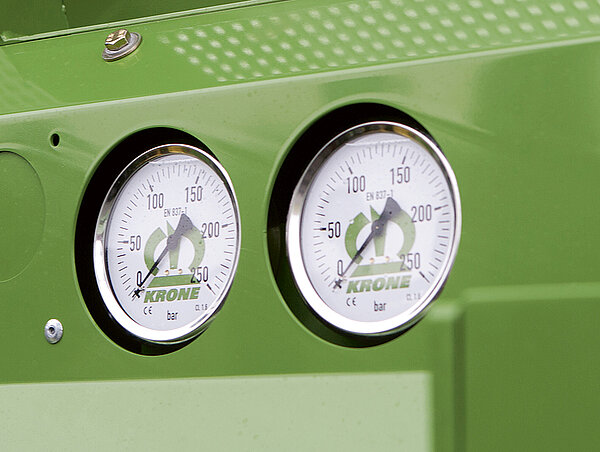

• Filling level indicator via pressure monometer

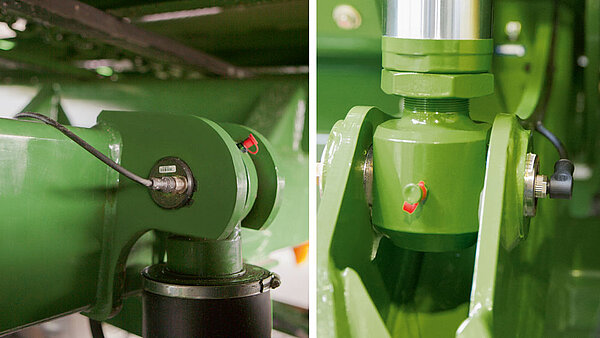

• Weighing device via gauging pins on the drawbar

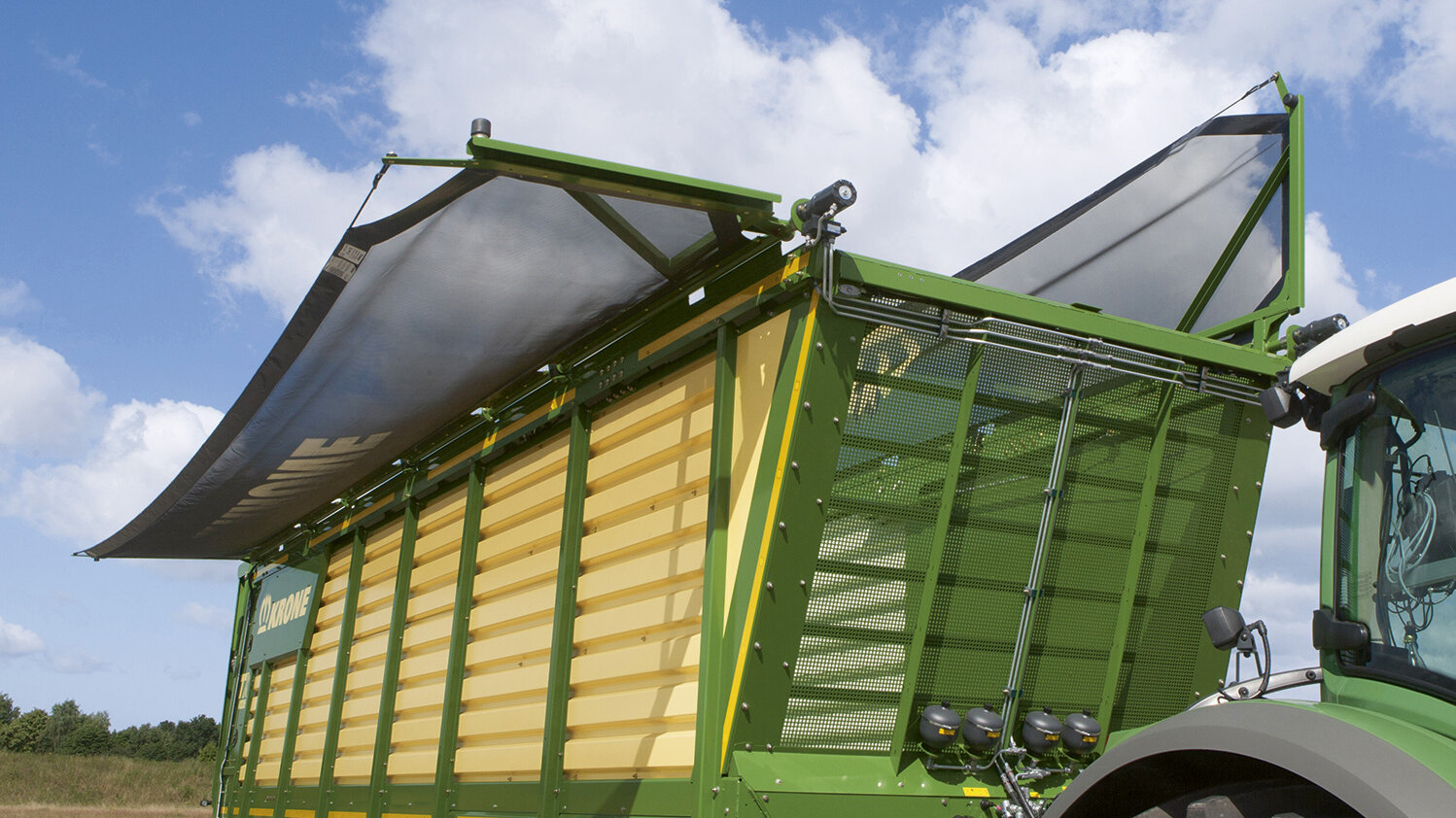

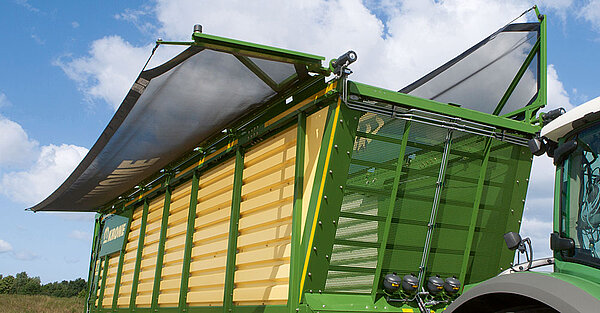

• Loading space cover for loss-free transport

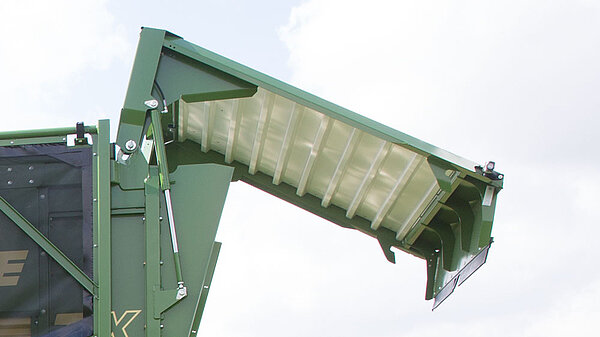

A reasonably specified machine gives efficient operation, is safe and increases productivity. A special feature for our forager transport wagons, the unloading aid at the front end supports the unloading process to vacate the machine faster and more efficiently. Further options include loading space covers, weighing devices, extra lights and reflective contour markings for added safety and maximum operator comfort.

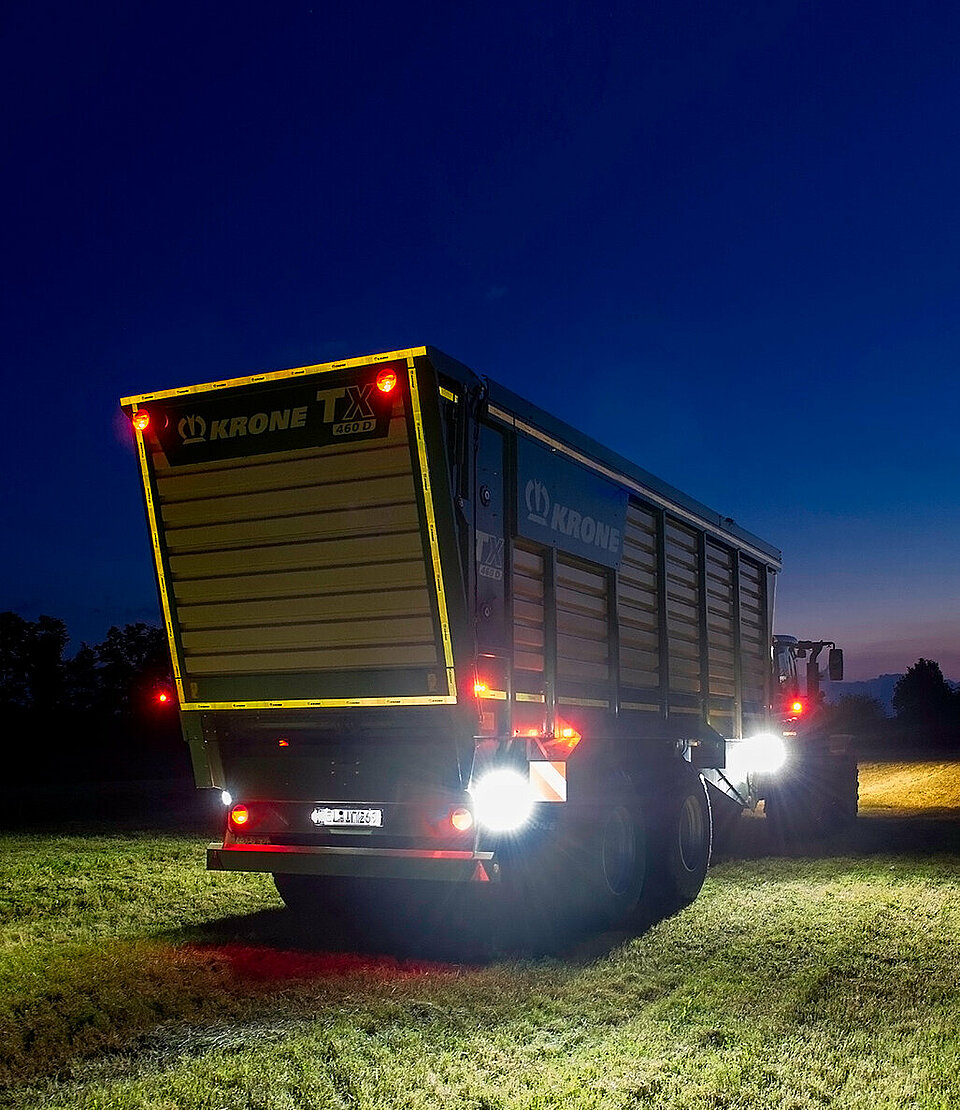

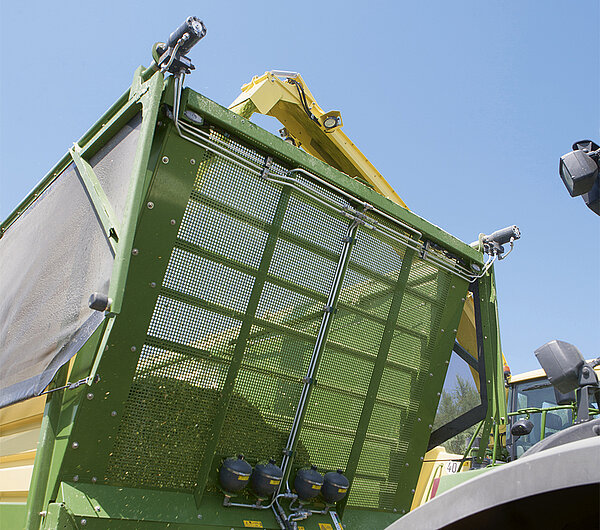

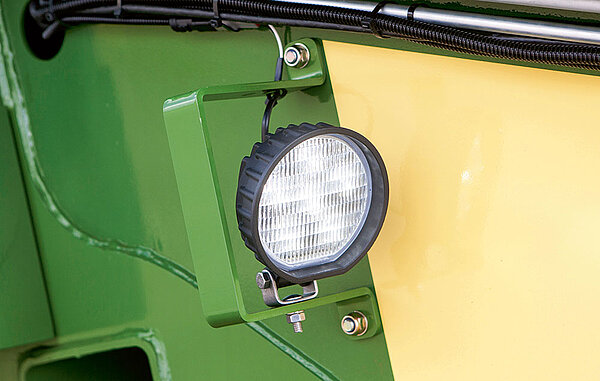

• With LED working lights safe in the field and on the road
• Excellent all-round view at night
• Optional internal and rear-view cameras provide great visibility.

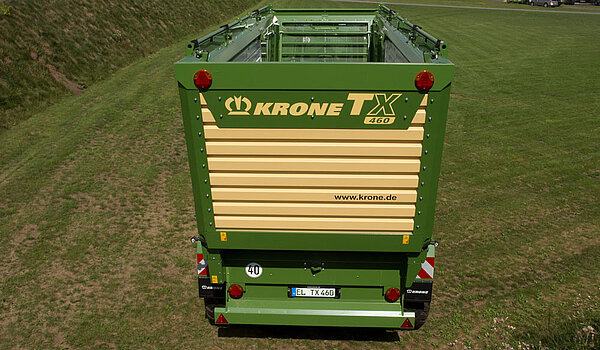

• Optional contour marking

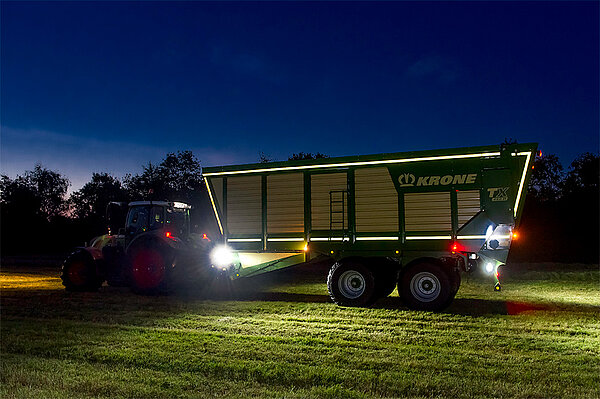

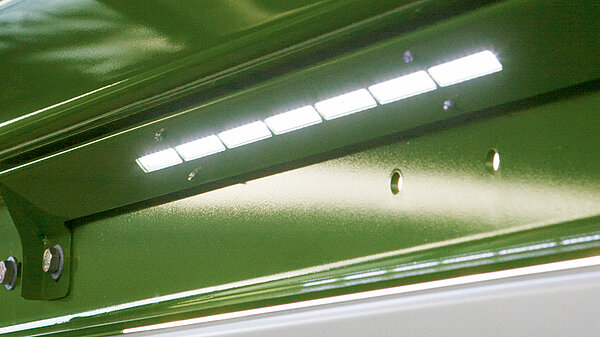

Powerful internal LED lights, up to four external LED working lights, highly visible sidelights and reflective strips as well as the camera with display screen combine to offer superior operator comfort at night and maximum safety.

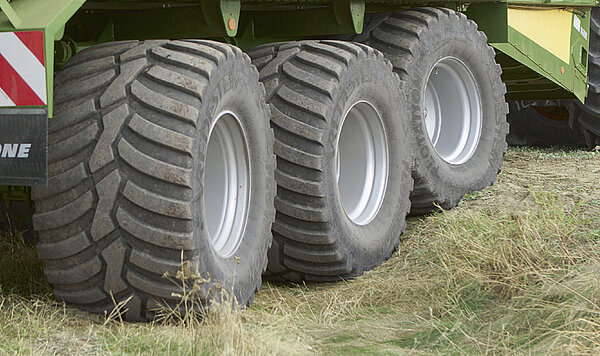

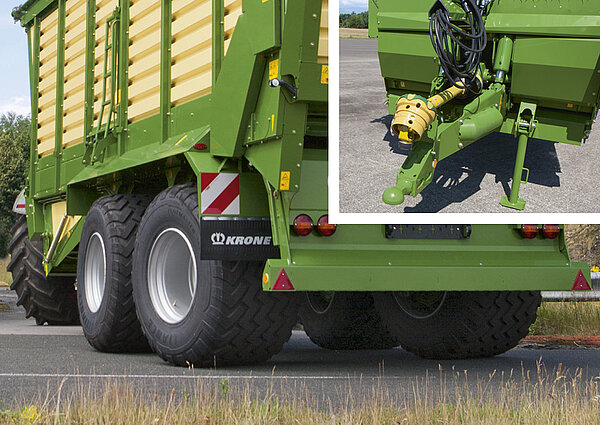

• Roll-resistant – safe handling on the road
• Maximum stability on slopes, reduced risk of rollover

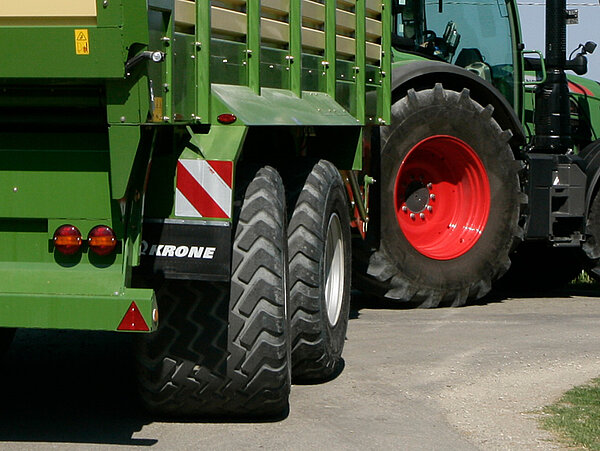

• With axle steering – protection of the sward, less tyre wear

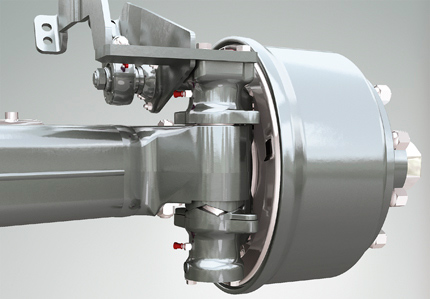

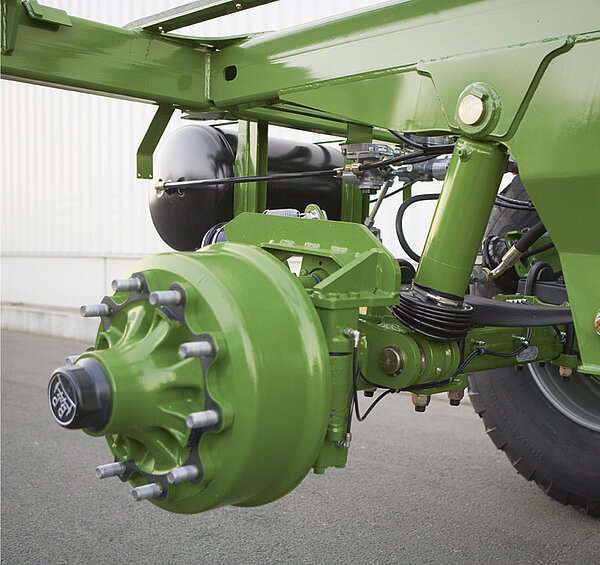

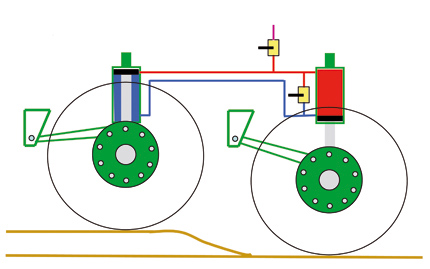

The trailing and positively steered tandem units with hydraulic compensation meet all practical requirements. Each running gear offers stability on the slope and roll stability when travelling at speed and around bends. These axles offer maximum safety and operator comfort.

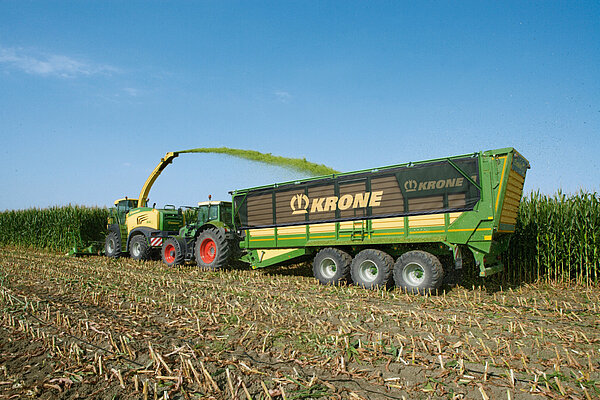

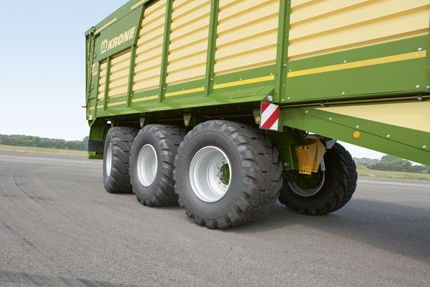

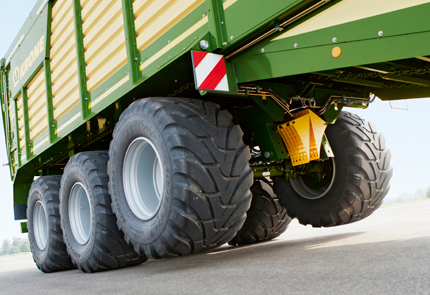

• Tridem axle assembly with load distribution on 3 axles
• Permissible axle load 27 t (TX 460) or 30 t (TX 560)
• Maximum ride comfort, stable and roll-resistant
• Steered front and rear axles, lift axle at front
• Option on TX 460, standard feature on TX 560

With the tridem axle assembly, the bottom hitching and ball head attachment 80, the TX forage transport wagons can be driven with a permissible axle load of 27 t (TX 460) or 30 t (TX 560) and at a maximum speed of 40 or 60 km/h. The running gear, designed for heavy loads, is extremely comfortable and reliable with hydraulic compensation and hydro-pneumatic suspension.

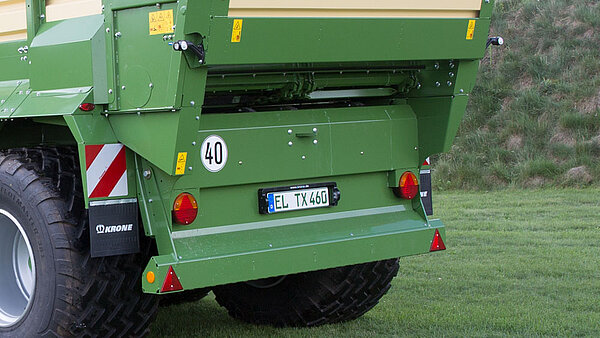

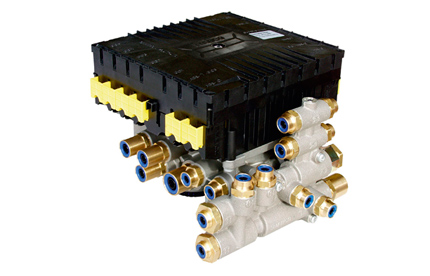

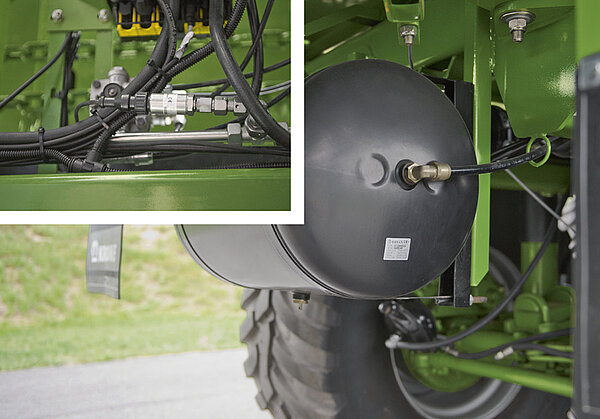

• Electronic braking system EBS with
  • automatic load-dependent braking force control ALB
  • anti-lock brake system ABS
  • roll stabilisation system RSS

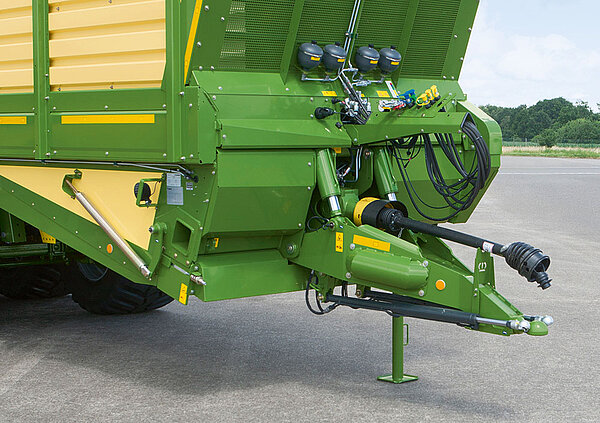

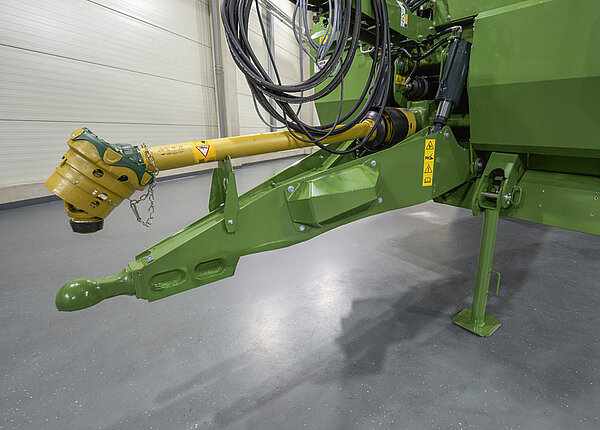

• Hydraulic or electronic forced steering as an option

Ever bigger and faster tractors, ever higher trailer capacities and payloads call for a thorough rethink on road and field safety. Therefore KRONE offers the electronic braking system as an option. Sourced from the industrial sector, the system has proven exceptionally well for many years. In addition, intelligent steered axles help protect the swath and provide added safety.

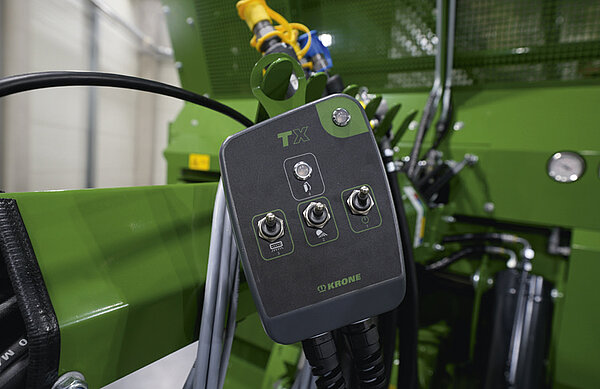

• Clear concept
• Easy operation

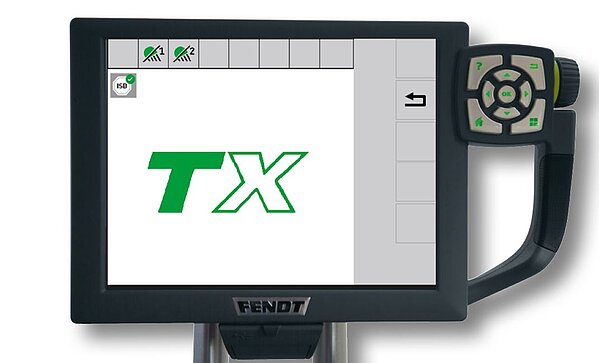

• CCI-ISOBUS – one box for all

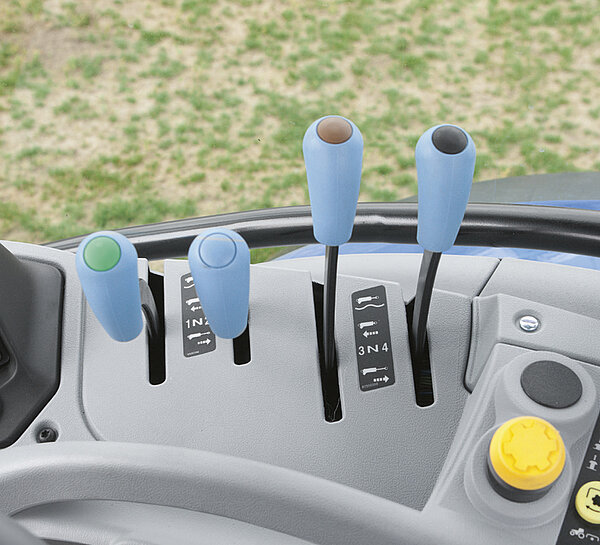

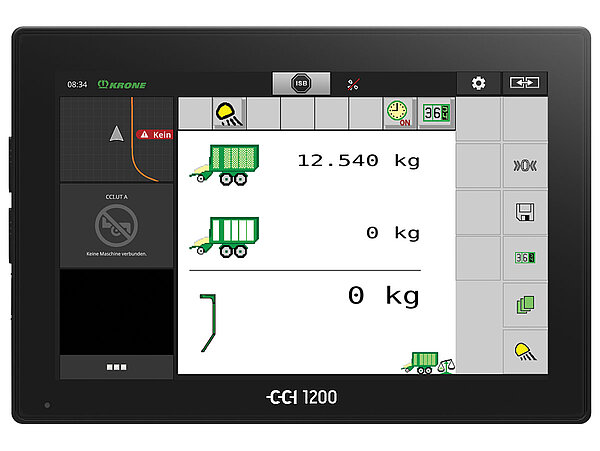

YYou don’t have to invest in an operating terminal to operate a TX. You simply operate the tractor from the regulating valves. Optional features such as the electronic weighing device and steering can easily be implemented with a Delta terminal, a CCI 1200 ISOBUS terminal or any ISOBUS tractor terminal

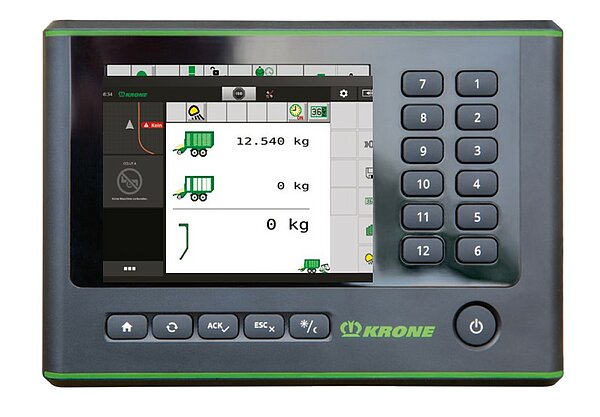

The DS 500 operator terminal: The DS 500 terminal has a backlit display which shows the current settings. This terminal provides all Alpha features plus auto height control on Swadro 1400 Plus after the height was set on one rotor. An optional joystick is available to off er even more convenient operation.
